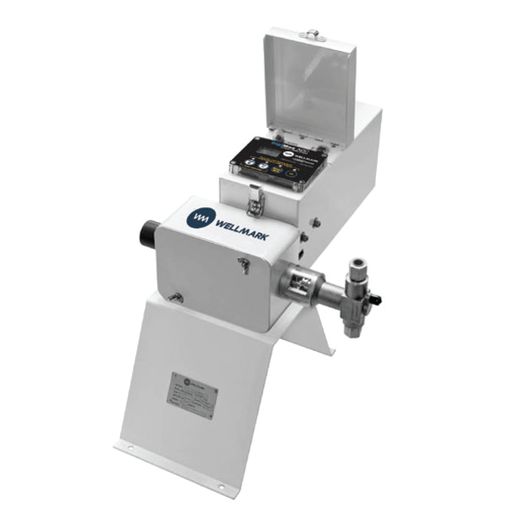

The Series EIP AC-Powered Pump provides an environmentally-clean method for injection of chemical into a line under pressure when AC power is available. It is a positive-displacement design, powered by an electric motor, thereby eliminating the gas emissions inherent with pneumatic-style pumps.
Applications include injection of methanol, corrosion inhibitors, friction reducers or scale inhibitors into wellheads or pipelines. Unique Temperature Sensor allows the operator to set temperature threshold to disallow pumping until the temperature falls to a specified level. Able to be controlled by DigiMax ADC Control/Timer
Specificiations
Connections
Pump Inlet and Outlet . . . . . . . . . . . . . . . . . 1/4″ Female NPT
Pump
Fluid Head . . . . . . . . . . . . . . . . Stainless Steel, Single or Dual
120VAC Gearmotor Size . . . . . . . . . . . . . . . . . . 1/6hp, 60rpm
Available Plunger Sizes . . . . . . . . . . . . . . . . . . 1/4″, 3/8″, 1/2″
3-Position Adjustable Displacement
General Control . . . . . . . . . . . . . . . . . . . . DigiMax ADC Digital Display with Auto Mode, Voltage Monitor, Temperature Sensor, Manual Pump Override, Fuse Protected
Mounts . . . . . . . . . . . . . . . . A-frame Support
