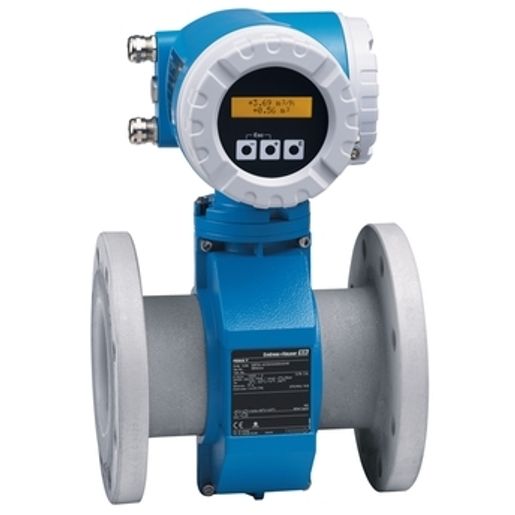

Promag Electromagnetic Flowmeter - 1/2"

Model - 50P15, DN15 1/2"

Electro-Magnetic, Flanged

Liner: PTFE

Process Connection: Cl.150, A105, flange ANSI B16.5

Electrodes: 1.4435/316L

Calibration: 0.5%

Additional Test, certificate: w/o

Approval: FM NI Cl. I Div. 2 / CSA Cl. I Div. 2

Housing: Compact Alu, IP67 NEMA4X

Cable, Remote Version: Not used

Cable Entry: Thread NPT 1/2

Power Supply; Display: 20-55VAC / 16-62VDC, WEA, 2-line + push buttons, WEA= language DE+EN+FR+IT+ES+PT+NL

Adjustment; Software Feature: Factory setup; basic version

Output, Input: 4-20mA SIL HART + frequency
