All flanged sensors are fabricated from stainless and carbon steel and welded to provide a hermetic seal
that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from the most hostile environments.

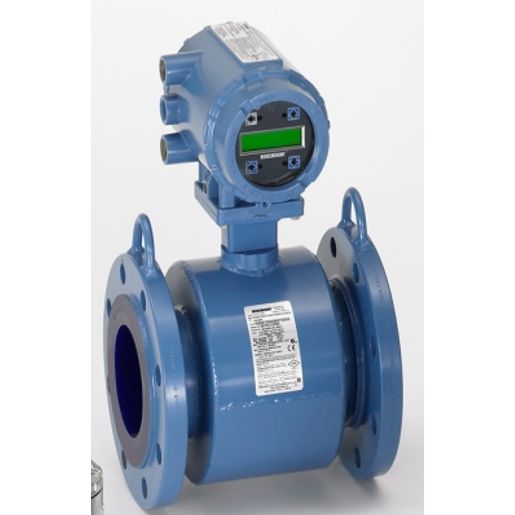

Model: 8707 High-Signal Magnetic Flowmeter Sensor
Lining Material: Polyurethane
Electrode Material: Tungsten-Carbide Coated 316L SST
Electrode Type: 2 Measurement Electrodes
Line Size: 080, 8-in. (200 mm)
Flange Material & Style: Carbon Steel Raised Face Slip-On
Electrode Housing Configuration: Sealed, Welded Housing with Pressure Relief
Safety Approvals: FM and CSA Ordinary Locations
Base Accuracy: 0.5% Standard 0.25% High Accuracy Option
Coil Power Drive: High-Signal Pulsed DC
Design Features: Superior Signal Stability for High Solids and Slurry Applications
- High Signal Sensor
- Flanged Process System Sensor
- Welded, sealed coil housing
- High current pulsed DC technology ideal for high solids or slurry applications
- Standard, grounding, and bullet-nose electrodes available
- Line Sizes - 3-in. to 36-in. (15 mm to 900 mm)
