Micro Motion Coriolis - R200 Series Sensor & MVD single variable flow transmitter

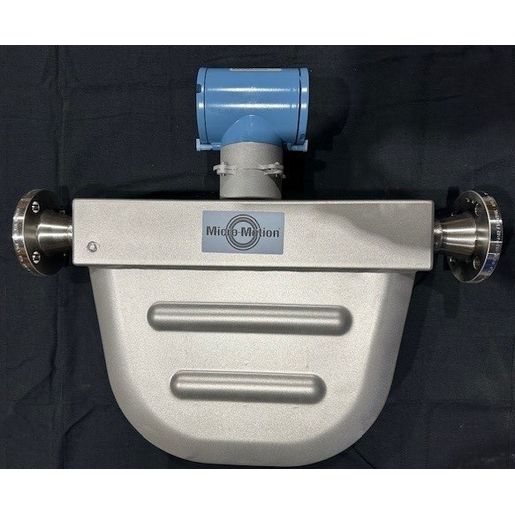

The FLOWMETER ASSY R200/IFT9703 SE4042000009 is a high-quality flow meter assembly designed by Micro Motion. With a port diameter of 1 1/2 inches, this flow meter is ideal for measuring the flow rate of fluids in various industrial applications. Its reliable performance and precise measurements make it a valuable tool for monitoring and controlling the flow of liquids in hydraulic, pneumatic, and pumping systems.
R200S341NCAAEZZZZ - Base Model: R200S - Micro Motion Coriolis R-Series sensor; 2-inch; 316L stainless steel
341: 1 1/2-inch ANSI 150 lb weld neck raised face flange
N: Standard case
C: For integral mount 1700 (all outputs) or 2700 (Fieldbus or Profibus) transmitters
A: No gland
A: CSA (US and Canada)
E: English installation manual
Z: Reserved for future use
Z: Reserved for future use
Z: Reserved for future use
Z: Standard product
Calibration Units: lb/min
1700I13ABAEZZZ - Base Model: 1700 - Micro Motion Coriolis MVD single variable flow transmitter
I: Integral mount transmitter
1: 18 to 100 VDC and 85 to 265 VAC; self switching
3: No display
A: One mA; one frequency; RS485
B: 1/2-inch NPT - no gland
A: CSA (US and Canada)
E: English installation manual and English configuration manual
Z: Reserved for future use
Z: No software options 2
Z: Standard product
Analog Output: Volume Flow Rate
Scaling: 4-20mA
LVR: 0 USGPM
UVR: 50 USGPM; 4-20mA = 0 - 50 USGPM
Frequency Output: Volume Flow Rate
Scaling: Frequency = Flow
Ratio: 1500 Hz = 50 USGPM
