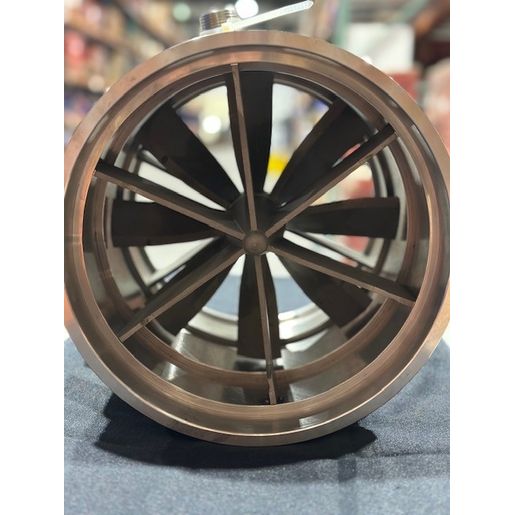

TM Series Liquid Turbine flow meter
Turbine In-Line Meters for Liquids - The TM Series Liquid Turbine flow meter is a highly-versatile product line that offers all stainless steel, precision-machined components with CD4MCu steel rotors.
Performance Data
Accuracy : +/- 1.0% over flow range (except TM0038 which is +/- 2.0%)
Repeatability: +/- 0.1% over flow range
Operating Temperature: -100° F to +300° F
Connection: Flanged, Victaulic® (grooved), or threaded
Materials
Meter Body: 316 stainless steel
Rotor Supports: 316 stainless steel
Meter Rotor: CD4MCu steel
Rotor Shaft: Tungsten carbide
Sleeve Bearings: Tungsten carbide
Certifications: NIST, CRN
