Description

80% fewer connections, leading to 50% faster rig up and eliminating iron management

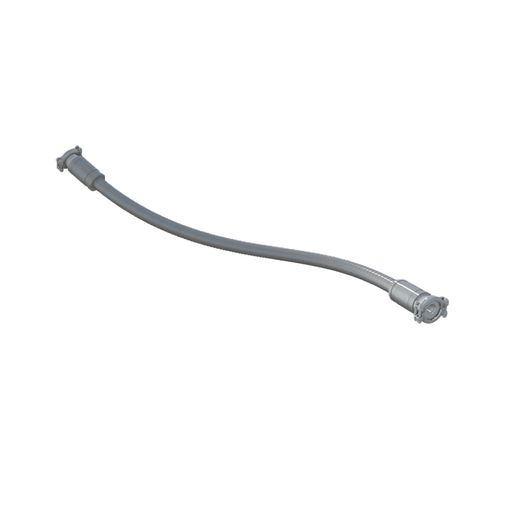

WellFlex™ is the mid-to-large bore sizes of our iComplete™ SAFlex™ onshore flexibles portfolio. WellFlex™ flowlines deliver higher flow rates, improving slurry delivery and reducing operational costs and downtime. WellFlex™ enhances completion project economics with two simple connections, eliminating several iron connections between the manifolds and trees. With industry standard clamp connections, WellFlex™ offers flexibility in rig ups and significantly reduces rig-up time.

System features: 4-inch , 5-inch and 5.5-inch 15,000 psi, robust end fitting with proprietary sealing technology, armor sheathing, visual inspection for wear, market leader in weight per foot


Why use the iComplete™ SAFlex™?

Durable

  • Erosion and corrosion resistant liners
  • High flow rate flexibles that lock in place while pressurized
  • Dissipation of pump cavitation and system vibration

Faster

  • Faster rig ups by reducing connections and multiple lifts
  • Hammer union removal
  • Improved flow rates

Flexible

  • Improves missile and zipper placement
  • Facilitates proper connection makeup
  • Removes fatigue


Package includes:

  • P567636 - QTY.2 - ADAPTER 5.5 HUB X 7-1/16 15K 6BX156 API FLANGE F/STANDARD SERVICE 16.505 LG 15000 CWP
  • P568618 - QTY.2 - NON METALLIC SEAL, FACE SEAL F/ FRAC APPL W/ 0.300 CS 6.160 OD X 5.560 ID SEAT ID SEAL F/ 5.5 HUB, TRAPEZOIDAL SEAL, WINTERIZED NITRILE
  • P571626 - QTY.2 - SPACER, BUSHING, F/ 5.5 CLAMP HUB CONNECTION, 1.54 LG, 4140 ALLOY STEEL
  • P568342 - QTY.2 - TECHLOK CLAMP 2 PC, 4 BOLT, H8, ASTM A320 GRADE L7 ALLOY STEEL, C/W BOLTING STUD WITH TWO SPH FACE NUTS, 1.375-8 UN-2, 12.000 LG, ASTM A320-L7 STUD AND ASTM A194-7 NUTS, HOT DIP GALVANIZED COATED
  • P570598 - QTY.2 - WELLFLEX, HANDLING COLLAR ASSEMBLY, F/ LIFTING 5.5IN-15K LINE, 2-1/2 TON WORKING LOAD

*The product images shown are for illustration purposes only and may not be an exact representation of the product.
