All models and sizes of Weco® butterfly valves can be equipped with Weco® operators or actuators as well as other brands of actuators. Typical options include standard and throttling handles, gear operators, chain-wheel operators, vane actuators, pneumatic actuators, special controllers, and positioners.

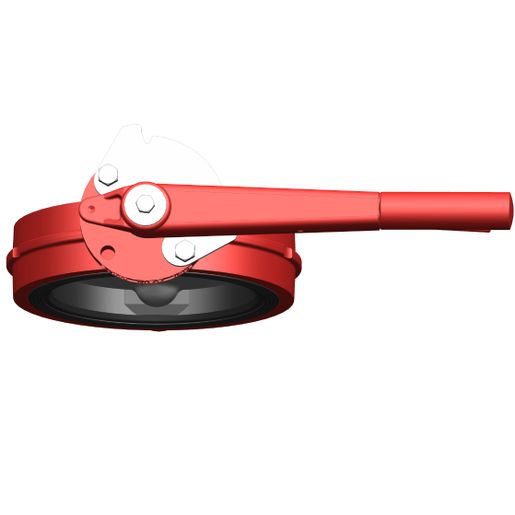

Standard Handle - 2 through 12-inch valve sizes
Recommended service - Manual on/off service
- Positive-stop gripper with integral locking lug ensures full open/full closed operation
- Model 12 and 12N valves have a detent plate which bolts on the valve body in each of four quadrants
- Model 22 and 22L valve have a pre-notched top flange with on/off detent positions
Pneumatic actuators - Quarter-turn, double acting actuator 2 through 6-inch valve sizes
Recommended service - Compact, pneumatic actuator for on/off valve operation
- The only moving part, the vane, is cast integral to the shaft for sturdiness does not require field lubrication
- Fully repairable in-line
- Mounts directly to valve in any quadrant
Gear operators - Weatherproof, worm gear operator 2 through 24-inch valve sizes
Recommended service - Manual on/off or throttling services
- Operator has 90° travel arc with internal travel stop screws for a plus or minus 20° adjustment at either end of the travel
- Mounts on the valve in any quadrant
- Chain wheel attachment available
- Hand-wheel shaft extensions available
Throttling handle - 2 through 12-inch valve sizes
Recommended service - Manual throttling service
- Notched detent plate and positive stop gripper with integral locking lug ensures positive locking in any of 10 positions from full open or full closed operation
- Detent plate bolts on the valve body in each of the four quadrants
