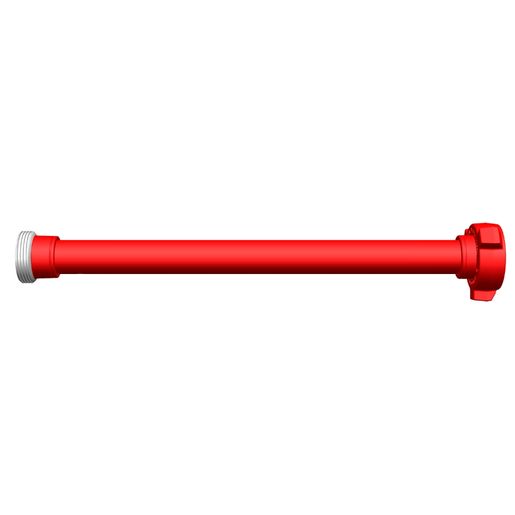

Weco® pup joints have been optimized for minimum weight and size. These rugged products are ideal for handling a complete range of standard and sour gas well-servicing fluids at pressures up to 20,000 psi. Available in 1 to 4-inch sizes, pups feature forged construction with integral Weco® wing union ends for a high-strength, high-integrity connection every time. Weco® pups come with full material traceability and can be supplied with Charpy impact values. Like all pressure containing products, Weco® pups require special handling.

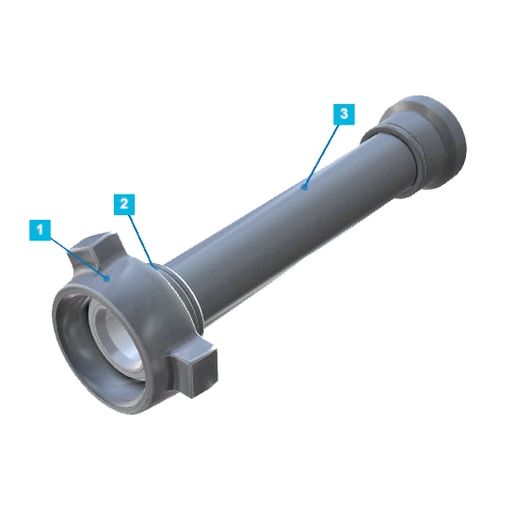

Features:

1. Weco® wing union nut detaches for field repair. Permits fast, easy service at the job site.
2. (Standard on Integral design, optional on NPST design)
3. Patented retention shoulder prevents nut from sliding down pup and decreases the risk of injury to personnel.
4. (Standard on Integral design, optional on NPST design)
5. Integral and NPST designs.
6. Available in integral and non-pressure seal designs to suit virtually all oilfield applications.

Details:

• Up to 20,000 psi cold working pressure
• 1-1/2", 2", 3", and 4" bore sizes
• Lengths to 20 feet

Recommended service: high-pressure well servicing lines, fracturing lines, testing lines, cementing and circulating lines, and other well service and stimulation applications

*The product images shown are for illustration purposes only and may not be an exact representation of the product.
