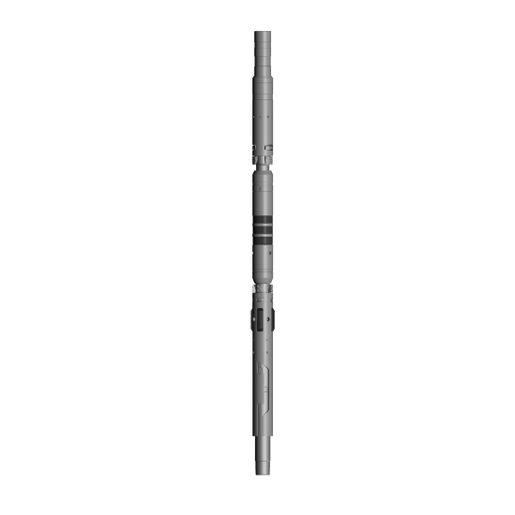

The SAZ-OMEGA-IX Mechanical Production Packer is a retrievable,double-grip compression or tension set production packer that can be left intension, compression, or in a neutral position, and will hold pressure fromabove or below. A large internal bypass reduces the swabbing effect duringrun-in and retrieval and closes when the packer is set. When the packer isreleased, the bypass opens first, allowing the pressure to equalize before theupper slips are released.

The SAZ-OMEGA-IX also features a patented upper-slip releasingsystem that reduces the force required to release the pacer. A non-directionalslip is released first, making it easier to releaser the other slips.

Applications

• Zonal Isolation, Injection, and production
• Shallow wells

Features and Benefits

• Holds high pressure from above or below
• The J-slot design allows easy setting andreleasing; 1/4 turn right-hand set, 1/4 turn right-hand release.
• Can be set using tension or compression Only
• One-quarter right rotation is required to set andrelease
• Field-proven releasing system
• Optional safety-release features available uponrequest
• Bypass valve is below upper slips, so the debris iswashed from slips when the valves is opened Benefit
• Field-proven design meets most production,stimulation, and injection needs.
• Can be run with a Model T-2 compression, or neutralposition.
• Bypass valve opens before upper slips are released.
• Available in All API material grades.
• Available in material conforming to NACE MR 0175 orH2S, CO2 well environment services requirements.
• Available in All API & premium threadconnections and Elastomer’s type
• Validated to withstand 10,000 psi differentialpressure and 275 F Temperature
