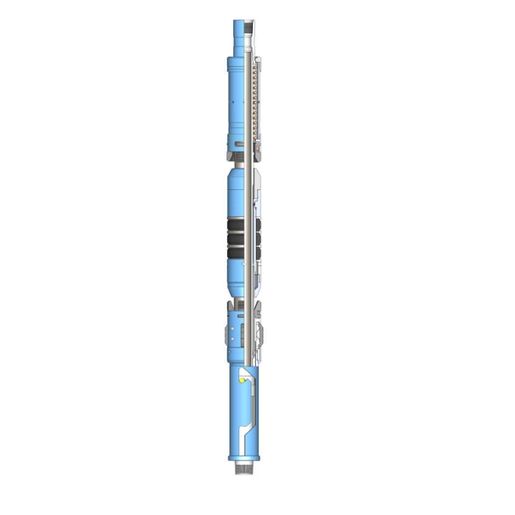

The SAZ OMEGA-IX Mechanical Production Packer is a retrievable, double-grip compression-set or
tension-set production packer that can be left in tension, compression, or in a neutral position, and will
hold pressure from above or below. A large internal bypass reduces the swabbing effect during run-in
and retrieval and closes when the packer is set. When the packer is released, the bypass opens first,
allowing the pressure to equalize before the upper slips are released.
The SAZ OMEGA-IX also features a upper-slip releasing system that reduces the force required to
release the packer. A non-directional slip is released first, making it easier to release the other slips.
APPLICATIONS
-Effectively meets several requirements for zonal isolation, injection, pumping, and production
-Full opening gives unrestricted flow and allows the passage of wireline tools and other
accessories
FEATURES & BENEFITS
-Holds high pressure differentials from above or below
-The J-slot design allows easy setting and releasing; 1/4 turn right-hand (or Left hand as per J slot
orientation) set, 1/4 turn right-hand(or Left hand as per J slot orientation) release.
-Can be set using tension or compression Only
-one-quarter right (or Left hand as per J slot orientation) rotation is required to set and release
-Field-proven releasing system
-Optional safety-release features available upon request
-Bypass valve is below upper slips, so the debris is washed from slips when the valve is opened
Benefits.
-Can be run with a Model T-2 On-Off Tool
-Can be left in tension, compression, or neutral position
-Bypass valve opens before upper slips are released
-Available in All API material grades
-Available in material conforming to NACE MR 0175 or H2S, CO2 well environment services
requirements.
-Available in All API & premium thread connections and Elastomer’s type
-Validated to withstand 10,000 psi differential pressure and 325° F.
