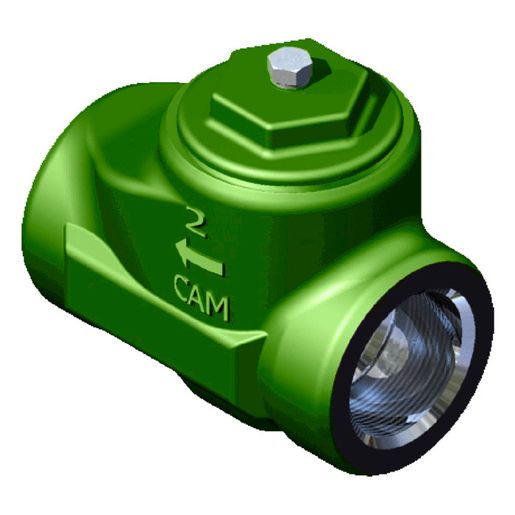

Wheatley 822 Swing Check Valve

Starting at $79.00

The Cameron WHEATLEY Series 822 check valve is designed to safely prevent backflow of liquid or gas in pipeline applications. The valve's beveled, self-aligning clapper and seat design incorporates a molded seal in the clapper for a bubble-tight primary seal and metal-to-metal secondary seal.

Specifications:
  • Designed in accordance with ASME B16.34 (WCC, LCC, and CF8M only)
  • Materials of construction conform to NACE MR0175/ISO 15156
  • Solid 316 stainless steel clapper and hanger reduce the need for separate pins, bushings, and rollers
  • Compact valve geometry reduces weight and space
  • Peroxide-cured Buna-N (FKM and HNBR optional) seals
  • Generous wrench area on body and hex-head threaded cover for easier installation and maintenance
  • Full opening
  • Suitable for horizontal or vertical flow up
  • Below-the-threads cover seal isolates the cover threads from line media
Hide product details
SKU: TW-822-Swing-Check-Valve
Size
Pressure Class
End Connection
External Material
Seal/O-Ring Material

Ready to ship in 3 week(s) or less.
Delivery in Lower 48 adds 4 to 8 days.

Price includes shipping.
