mSafe2

$44,769.00

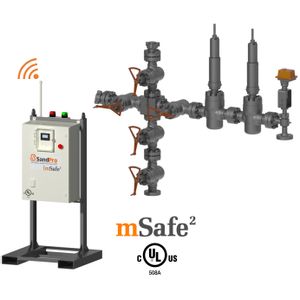

mSafe2 - Production HYD (2) SSV / ESD System

Improve performance with electric-over-hydraulic emergency shutdown control system that enables condition-based monitoring and maintenance.

The mSafe2 safety valve control system enhances wellsafety increases operational efficiency, lowers maintenance costs and maximizes production.

  • Manual, remote and automated operations
  • Implement condition-based monitoring and maintenance using valve status data communicated via SCADA, telemetry or downloaded from onboard memory

ELECTRONICALLY ASSISTED HYDRAULIC CONTROL

Field-proven in Latin and North America, the mSafe2 design integrates electronic control and an electro-hydraulic pump to ensure the safety and performance of hydraulically actuated safety valves used in emergency shutdown applications.

The controller precisely and reliably manages 2 valve positions by monitoring hydraulic pressure in the actuator and actuator lines. The acquired data supports condition-based monitoring and maintenance practices that can significantly improve safety and performance.

Real-time and historical data is transferred using the wellsite SCADA system. Months of data can also be saved in onboard memory and downloaded via Modbus RS485 or Hart communication protocols.

BENEFITS:

  • Monitors and regulates ESD actuator pressure
  • UL 508A Listed and NEMA 1, 3R, 4, and 12 Encloser
  • Reduce wellsites visits
  • Hydraulic fluid leak detection system
  • Partial stroke test
  • Full SCADA capability and 2-way telemetry ability
  • Available in sizes 2 1/16" 5K to 3 1/16" 10K
SKU: MS2-2-1-16-10k-2WAY-VLI-SPI
Valve & Choke Trim: EE 0.5
Valve Temp Rating: PU
PLS Level: PSL-3
Base: 36x32 in (91x81 cm)
Height: 69 in (175 cm)
Hydraulic outlet pressure: 300 to 2,000 PSI (1 to 138 Bar)
Oil Volume: 2 gallon (7.57 L)
Operating Temperature: -40 F to 185 F (-40 C to 85 C)
Electric Power required: 120VAC
Communications: Modbus RS485 protocol
Measurement Accuracy: +/- 1%
Response Time: +/- 1%
Internal Memory Capacity: 6 months, minute by minute
